Jaw crusher

Processing capacity: 1-2200t/h

Feed opening: 150×250-300×1300mm

 Feeding size: 125-250mm

Volume weight: 3.2-120t

Applied material: limestone, fly ash, coal powder, slag, clay.


  • Features
  • Technical data

Introduction to Jaw Crusher

As a big brother of crushing equipment, China jaw crusher has always served as the major driving force among the crusher products as it has such advantages as simple structure, stable performance, easy and convenient examination and repair and big crushing ratio. The types of crushing equipment are increasingly expanding, but the position of jaw crusher can never be replaced. It is widely used in all kinds of production lines and completes the material crushing process in the crushing chamber formed by movable jaw plate and fixed jaw plate and the crushing chamber moves by stimulating the movement of two jaws of animals.

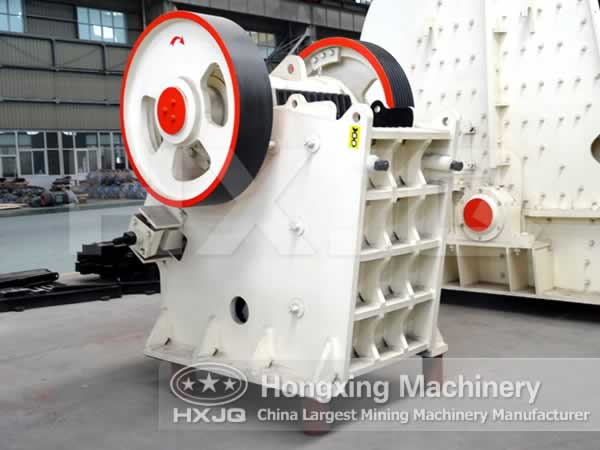

Jaw crusher

Jaw crushers are indispensible in the ore crushing procedures. After constant practice and improvement, jaw crushers remain their structure and advantages, so that they are widely used in many industries such as ore beneficiation, building material and stone crushing and sand making industry. In the ore beneficiation industry, jaw crushers are mainly used for the coarse and medium crushing of hard and medium hard ores and also used for the fine crushing in the small-sized mines.

Jaw crusher

Jaw crusher

Jaw crusher

Jaw crusher

As a leading manufacturer of complete sets of crushing and screening equipment and provider of comprehensive plan for aggregate processing in China, our company has concentrated on the research and development of highly efficient and energy-saving crushing equipment. Large-sized and medium and large-sized jaw crusher is one of our competitive products, especially in the design and production of large-sized jaw crusher, our company has been taking an absolute leading position in domestic and foreign market. Jaw crusher is one of the most commonly used crushing machines in the mining industry, and it is mainly used for the medium and coarse crushing of all kinds of materials whose compression strength is lower than 320MPa and it has such features as big crushing ratio, high output, even product granularity, simple structure, reliable operation, easy and convenient maintenance and economical operational cost.

Working Principle of Jaw Crusher

The working manner of this series crushing machine is dynamic extrusion type, and its working principle goes like this: the electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing; when the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber. With the continuous rotation of the electro motor, the movable jaw of the crusher will do periodic motion to crush and discharge the materials, thus realizing mass production.

China Jaw Crusher Manufacturer

Jaw crusher supplier

Hongxing Machinery is one of the professional company manufacturing jaw crushing plant, and after many years of development, our company has become a leading manufacturing company in China jaw crusher industry. Our company can produce many types of jaw crushers, so that the prices are different. Jaw crushers provided by Hongxing Machinery have high cost performance and fast investment returning. If you need to learn about jaw crusher price, feel free to contact Hongxing Machinery, and we will offer you comprehensive services about of jaw crushers.

Jaw crusher price consulting hotline: +0086-371-67833161.
